Cisco 350-501 SPCOR Exam Questions Online Test
Please record your answers and verify them at the end of the article
QUESTION 1
debug ip ospf hello command is issued on R1, these log messages
Refer to the exhibit. R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the are seen:
Which command can be configured on routers R1 and R2 on f0/0 interfaces to form OSPF adjacency?
A. ip ospf network point-to-multipoint non-broadcast
B. ip ospf network non-broadcast
C. ip ospf network broadcast
D. ip ospf network point-to-point
Reference: https://community.cisco.com/t5/routing/ospf-point-to-point-links/td-p/1913398
QUESTION 2

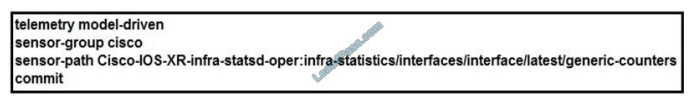

Refer to the exhibit. This configuration is being applied on an IOS XR route.
Which statement about this configuration is true?
A. It is used to create a sensor-group and has a list of YANG models for streaming.
B. It is used to create a subscription to specify the streaming interval.
C. It is used to identify MIB entries and has a list of YANG models.
D. It is used to identify traps for SNMP polling.
QUESTION 3

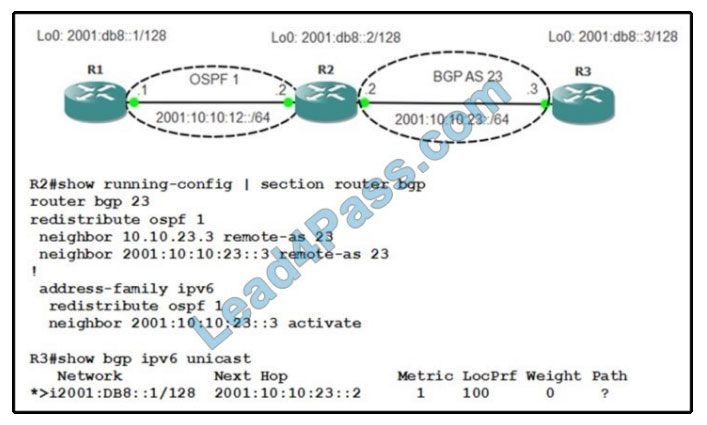

Refer to the exhibit.
A company is deploying IPv6 using a dual-stack approach. OSPFv2 is used for IPv4 routing and is redistributed into the BGP IPv4 address family. The network engineer also needs to enable OSPFv3 for IPv6 routing using the same design that is used for OSPFv2. All prefixes in the OSPFv3 database must be redistributed into the BGP IPv6 address family at router R2, but R3 does not receive the loopback 0 IPv6 address of R2 via BGP.
Which action will fix this problem?
A. redistribution of BGP routes into OSPFv3
B. redistribution of OSPFv3 routes into BGP with include-connected
C. mutual redistribution of OSPFv3 and BGP routes
D. redistribution of connected OSPFv3 routes
QUESTION 4

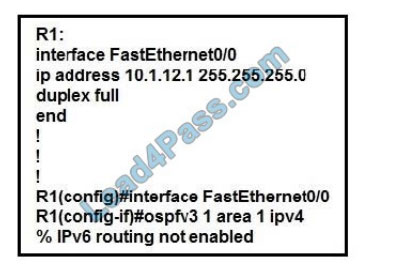

Refer to the exhibit. A network engineer is implementing an OSPF configuration. Based on the output, which statement is true?
A. OSPFv3 does not run for IPv4 on FastEthernet0/0 until IPv6 routing is enabled on the router and IPv6 is enabled on interface FastEthernet0/0.
B. In the ospfv3 1 area 1 ipv4 command, area 0 must be configured instead of area 1.
C. OSPFv3 cannot be configured for IPv4; OSPFv3 works only for IPv6.
D. “IPv6 routing not enabled” is just an informational message and OSPFv3 runs for IPv4 on interface FastEthernet0/0 anyway.
ipv6 is enabled globally not on interface, so A is wrong.
QUESTION 5
How does model-driven telemetry use YANG?
A. to reset network devices that malfunction
B. to set informs and traps on clients to report back to a centralized server
C. to subscribe to data that is streamed from a device
D. to poll network devices on a 30-minute interval
QUESTION 6
Refer to the exhibit.
R1
router bgp 65000
router-id 192.168.1.1
no bgp default ipv4-unicast
neighbor 192.168.1.2 remote-as 65001
Which task completes the configuration?
A. Specify the maximum number of prefixes that R1 receives from neighbor 192.168.1.2.
B. Specify the source interface in the neighbor statement.
C. Specify the activate neighbor 192.168.1.2 under the IPv4 address family.
D. Specify the local-as value in the neighbor statement.
QUESTION 7
You are configuring MPLS traffic-engineering tunnels in the core. Which two ways exist for the tunnel path across the core? (Choose two )
A. Tunnel links inherit IGP metrics by default unless overridden
B. Tunnels can be configured with dynamic path or explicitly defined path
C. A zero bandwidth tunnel is not a valid option
D. The bandwidth statement creates a “hard” reservation on the link-The dynamic path option is supported only with ISIS
QUESTION 8

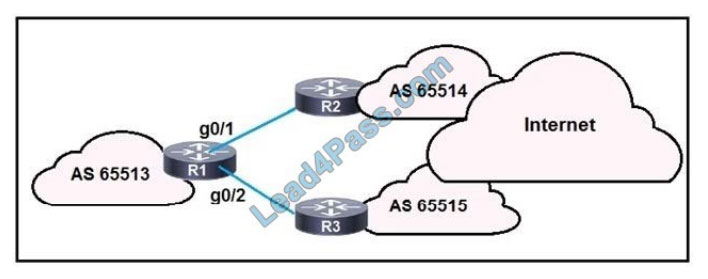

Refer to the exhibit. R1 is connected to two service providers and is under a DDoS attack.
Which statement about this design is true if URPF in strict mode is configured on both interfaces?
A. R1 drops all traffic that ingresses either interface that has a FIB entry that exits a different interface.
B. R1 drops destination addresses that are routed to a null interface on the router.
C. R1 permits asymmetric routing as long as the AS-PATH attribute entry matches the connected AS.
D. R1 accepts source addresses on interface gigabitethernet0/1 that are private addresses.
QUESTION 9

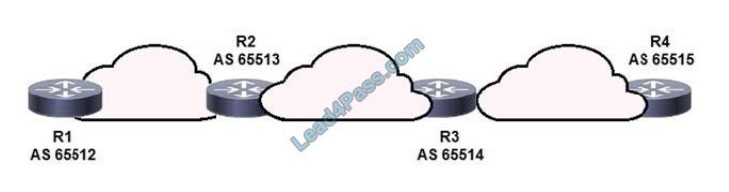

Refer to the exhibit. BGPsec is implemented on R1, R2, R3, and R4. BGP peering is established between neighboring autonomous systems.
Which statement about implementation is true?
A. BGP updates from the iBGP peers are appended with a community of local-as.
B. BGP updates from the all BGP peers are appended with a community of no-export.
C. BGP updates from the eBGP peers are appended with an additional AS path value that is statically set by the domain administrator.
D. BGP updates from the eBGP peers are appended with a BGPsec attribute sequence that includes a public key hash and digital signature.
QUESTION 10

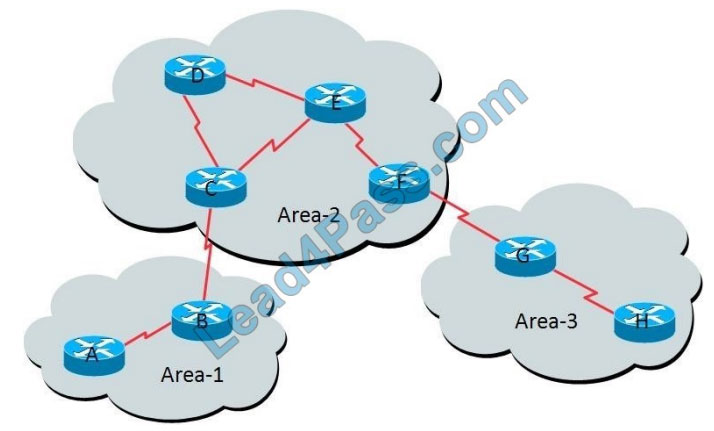

Refer to the exhibit.
All routers are running IS-IS. Which routers must be Level 2 routers?
A. B, D, E and G
B. A, D, E, and H
C. B, C, F, and G
D. B, C, E, F, and G
E. A, B, C, D, F, G, and H
QUESTION 11

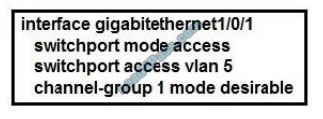

Refer to the exhibit. An engineer is preparing to implement link aggregation configuration. Which statement about this configuration is true?
A. The switch port negotiates an EtherChannel if it receives LACP packets from a connected peer running passive mode.
B. The switch port actively sends packets to negotiate an EtherChannel using PAgP.
C. The switch port passively negotiates an EtherChannel if it receives PAgP packets from a connected peer.
D. The switch port accepts LACP and PAgP packets from a connected peer and negotiate an EtherChannel using the common EtherChannel mode.
Reference: https://www.cisco.com/en/US/docs/switches/metro/me3600x_3800x/trash/swethchl.html
QUESTION 12
An engineer must extend Layer 2 between two campus sites connected through an MPLS backbone that encapsulates Layer 2 and Layer 3 data. Which action must the engineer perform on the routers to accomplish this task?
A. Configure QoS for MPLS and E-ACCESS.
B. Configure a EtherChannel for E-LAN.
C. Configure a pseudowire for E-LINE.
D. Configure Cisco MPLS TE for use with E-TREE.
Verify answer
| Q1 | Q2 | Q3 | Q4 | Q5 | Q6 | Q7 | Q8 | Q9 | Q10 | Q11 | Q12 |
| D | A | B | C | C | C | AB | A | D | D | B | C |
